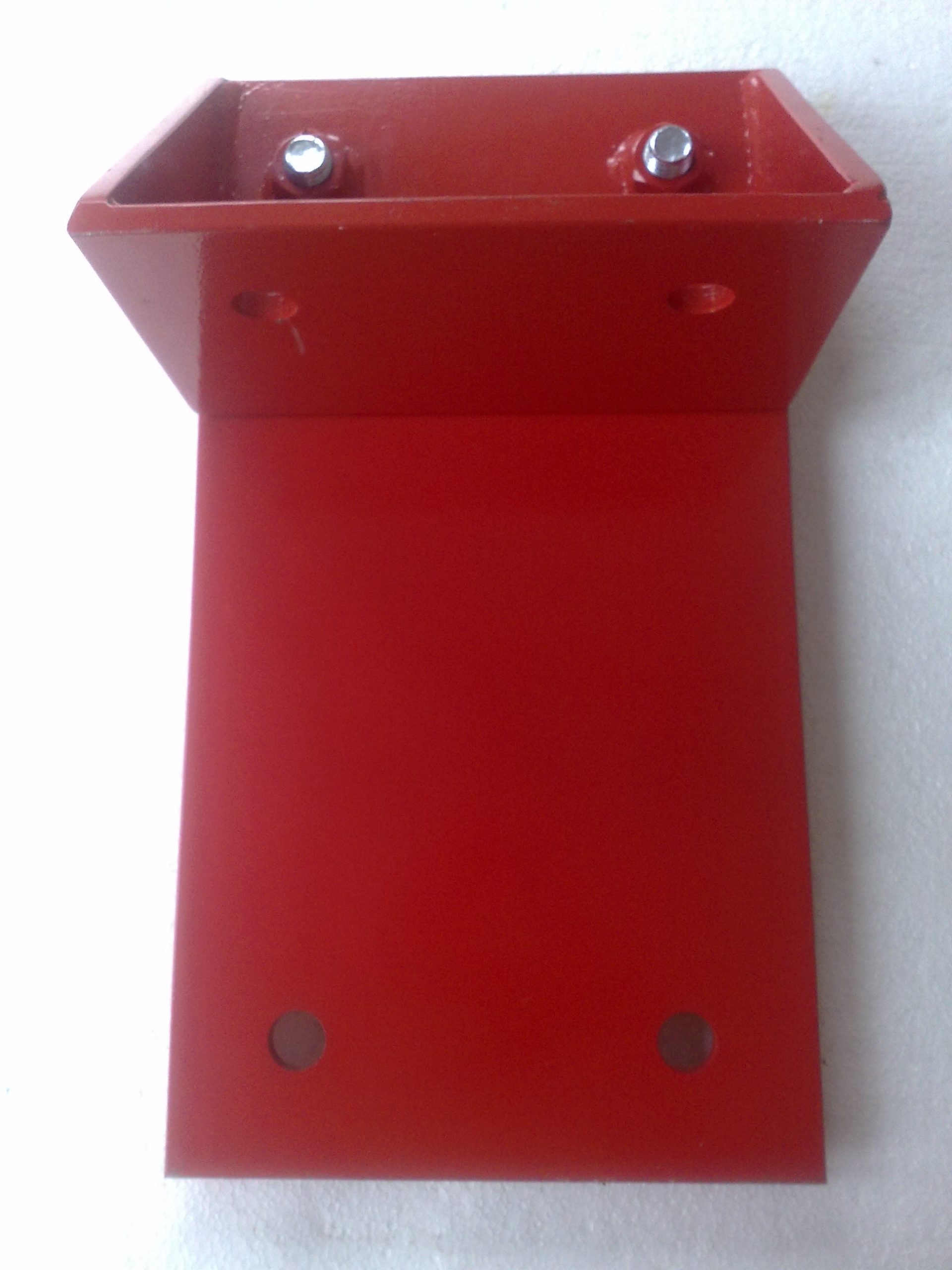

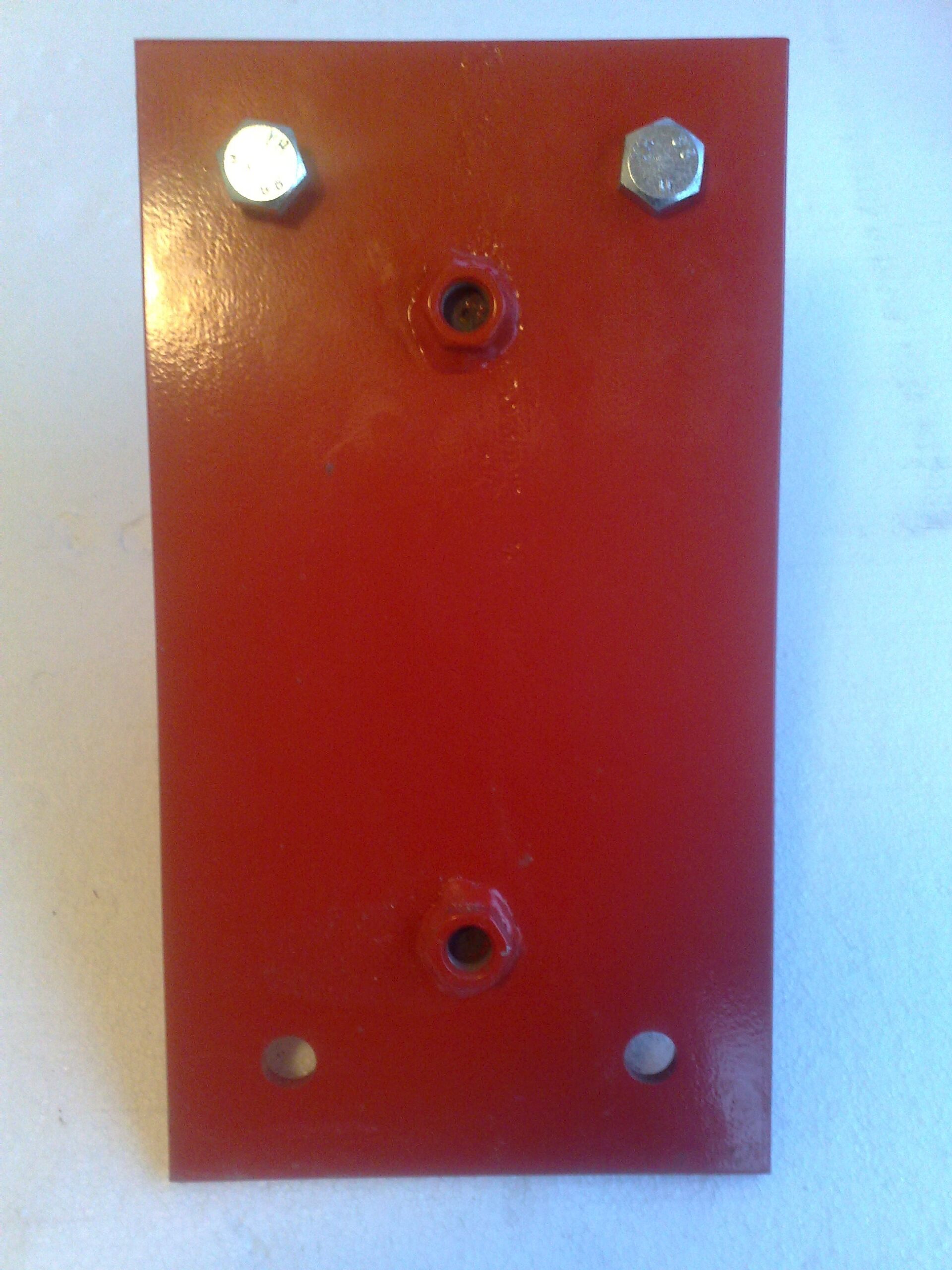

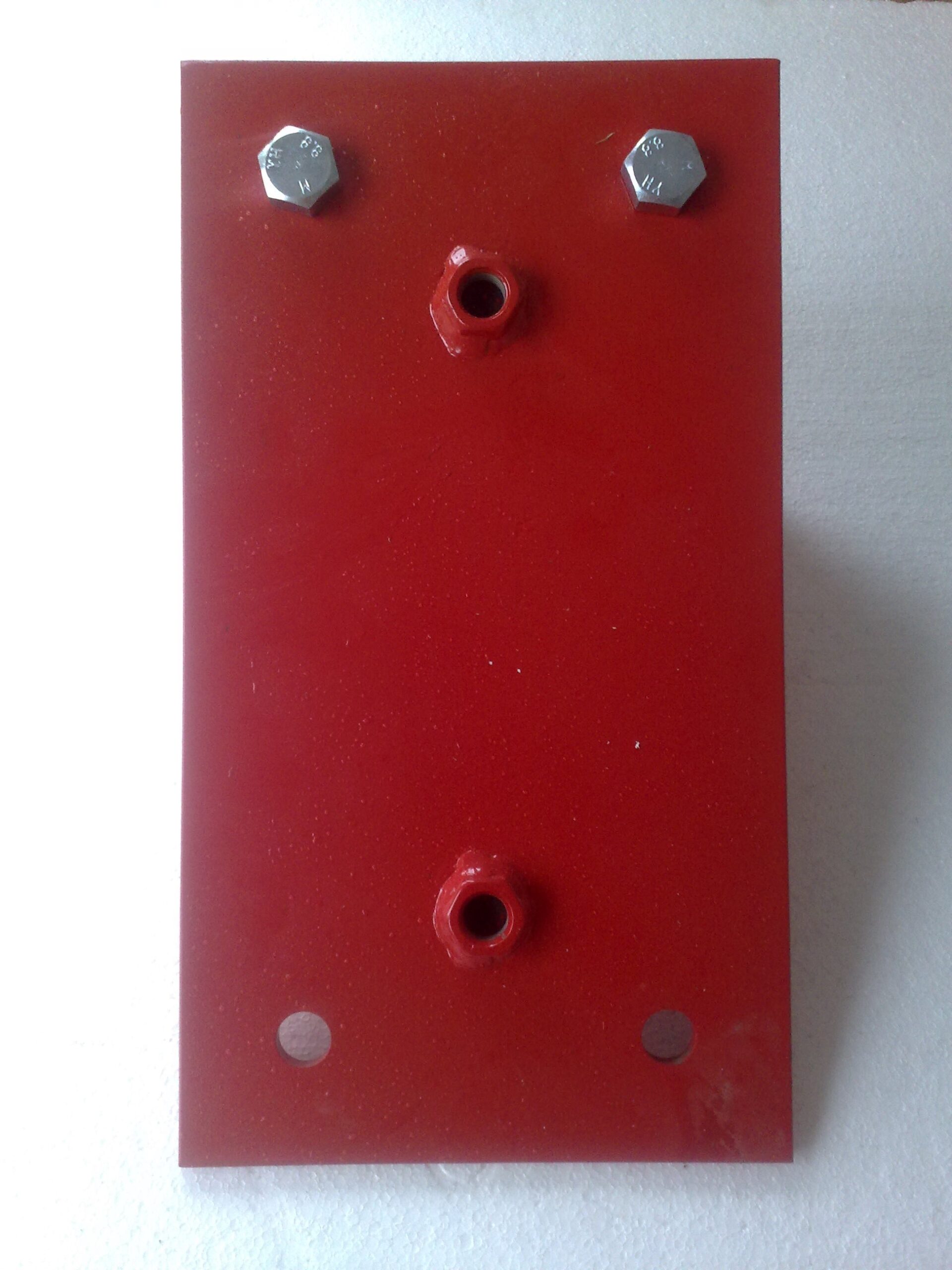

Above Dock Mounting Bracket

The above dock bumper bracket are designed to accommodate trailer heights greater than the loading dock.

Manufactured using 10mm thick mild steel plate and supplied in red spray paint finish as standard,

The above dock area of the bracket has two gussets welded for extra strength. Fixing of the above dock bumper bracket is via two points on the face and two points on the top. Rubber bumper is fastened via 20mm bolts with nuts welded to bracket.

Available in 150mm or 250mm above dock fitment.

Options available.

150mm or 250mm above dock height > To accommodate 450mm, 600mm or 750mm long Rubber Dock Bumper > Hot dipped galvanised finish > Other colours available > Bolt together or welded > Fixing kit > Supplied with or without Rubber Dock Bumper > Other bracket heights available Please Enquire.

Trade price from: £130-00 per pair ex works

Online price from: £170-00 per pair ex works
